IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load

Name: IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load
Brand: Sinuo
Price: 1 USD

Quality IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load for sale

Brand Name : Sinuo

Model Number : SN553-RV8000

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 10 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Plywood

Frequency Range : 10----60Hz

Max. Load Capacity : 300KG

Acceleration Range : 0---11G

Waveform : Sine wave

Equipment Weight : 500KG

Table Size : 1000mm×800mm

Equipment Dimensions : W1050mm×D820mm×H680mm

Power Supply : AC220V/50HZ/Single-phase

Contact Now

IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load

Product Overview

The SN553‑RV8000 Mechanical Vibration Testing Machine is designed to simulate transportation vibration and mechanical shock for household appliances, electronics, components, modules, instruments, and electromechanical products. It fully complies with reliability test standards including IEC 60068, MIL‑STD‑810, ISO 10816, and UL, making it ideal for quality verification, reliability testing, and transport simulation.

IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load

Technical Parameters

Table Size	1000mm×800mm
Frequency Range	10----60Hz
Max. Load Capacity	300KG
Acceleration Range	0---11G
Amplitude Range	0—2.6mm(P-P),adjustable
Control Interface	RS232 /9P
Functions	Fixed frequency, sweep (logarithmic Oct/min, linear), multi-stage random
Waveform	Sine wave
Vibration Direction	Vertical (X/Y/Z directions achieved by adjusting product orientation)
Equipment Dimensions	W1050 mm×D820 mm×H680 mm
Equipment Weight	500KG
Power Supply	AC220V/50HZ/Single-phase

Product Features

Centrifugal excitation structure, low noise, stable performance
Synchronous reverse drive for uniform vibration and minimal lateral displacement
Lockable casters for easy movement; no fixed foundation required
Amplitude preview & stepless adjustment for flexible testing
Real‑time display: amplitude, acceleration, frequency, test time & cycles
User‑friendly Chinese/English Windows operation interface
Supports unlimited test parameter groups & test report printing
Wide application: household appliances, electronics, components, modules, instruments

Product Details

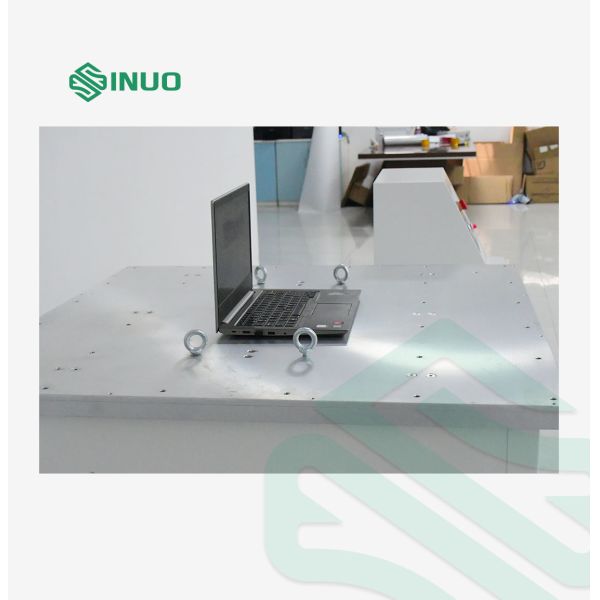

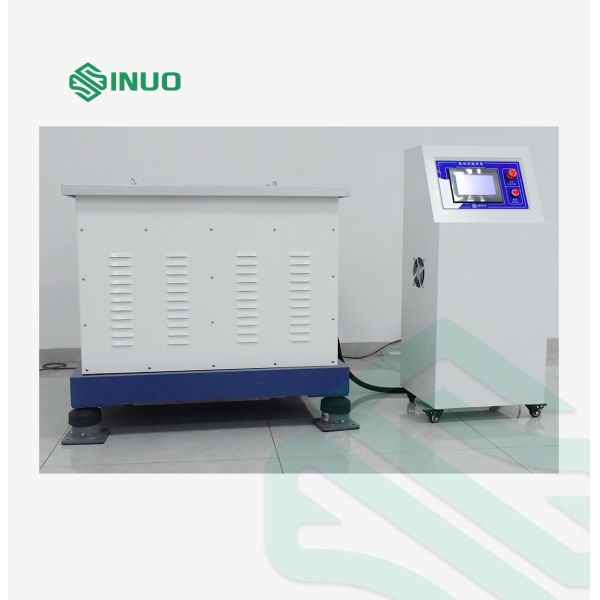

IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load Images
