AC & DC EV Charging Gun Functionality Tester SNEQ08 | IEC 62196-1

Brand Name : Sinuo

Model Number : SNEQ08

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 10 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Plywood

Power Input : Singlephase AC 220V / 50Hz

Air Supply : 0.6MPa

Control System : PLC + industrial computer

Resistance Test : 1–5000Ω, accuracy ±1%

Thermistor Test : 100–50,000Ω, accuracy ±2%

Drive voltage : DC12V

Dimensions : W900mm × D800mm × H1800mm

Weight : Approx. 300kg

Contact Now

AC & DC EV Charging Gun Functionality Tester SNEQ08 | IEC 62196-1

Product Overview

This comprehensive test system is designed for functional and safety verification of AC/DC charging guns complying with Chinese, European, and American standards. It supports automatic QR code/barcode association, one‑button full‑function automatic testing, real‑time data storage, report generation, and pass/fail printing. Featuring high efficiency and labor savings, it is ideal for mass production line inspection in manufacturing facilities.

Key Functions
  1. Data Management: Automatically associates product QR code with test results and generates test reports
  2. Full Automatic Testing: Continuity, short circuit, miswiring, resistance, electronic lock, insulation, and withstand voltage tests
  3. Data Traceability: Scan codes before test; results linked with barcode for full traceability
  4. Result Output: Real‑time saving, review, and export of test data; pass result printing supported
AC & DC EV Charging Gun Functionality Tester SNEQ08 | IEC 62196-1
Technical parameters
Power Input Single phase AC 220V / 50Hz
Air Supply 0.6MPa
Control System PLC + industrial computer
MES Integration Optional (additional cost)
Resistance Test 1–5000Ω, accuracy ±1%
Thermistor Test 100–50,000Ω, accuracy ±2%
Drive voltage DC12V
Insulation Test (Line to Line)
Test modes Single phase, three phase, DC (positive/negative/ground)
Insulation Voltage DC 100–1000V (adjustable)
Lower Limit 1MΩ – 1GΩ (adjustable)
Accuracy ±5%
Alarm Activates when resistance is below threshold
Withstand Voltage Test (Line to Line)
Test modes Single phase, three phase, DC (positive/negative/ground)
Voltage Range AC 0–5kV / DC 0–6kV (adjustable)
Leakage Limit AC 0.1mA–20mA; DC 0.01mA–5mA (adjustable)
Accuracy ±1.5% + 3 digits
Mechanical & Structure
Test Station 1 station
Gun Mounts CN / EU / US standard AC/DC gun sockets supported
socket Height ~750–1000mm (ergonomic design)
Dimensions W900mm × D800mm × H1800mm
Weight Approx. 300kg
Product Details

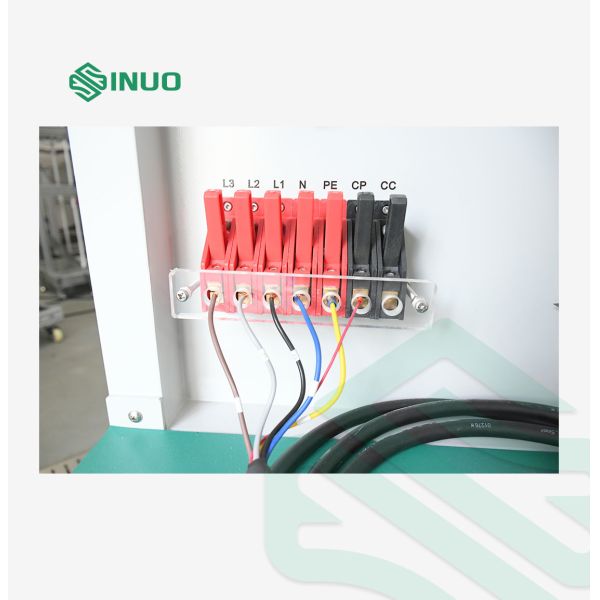

AC & DC EV Charging Gun Functionality Tester SNEQ08 | IEC 62196-1AC & DC EV Charging Gun Functionality Tester SNEQ08 | IEC 62196-1
